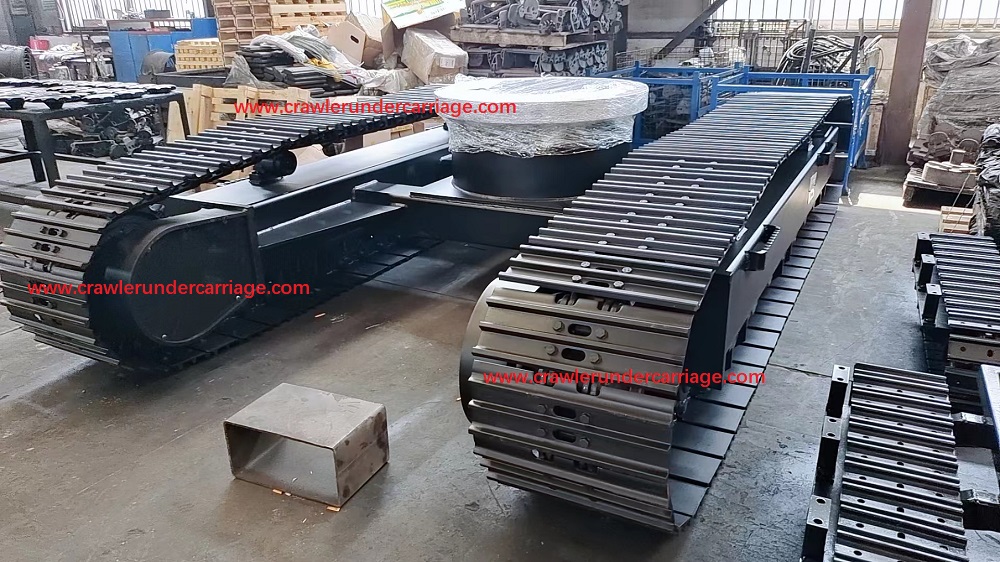

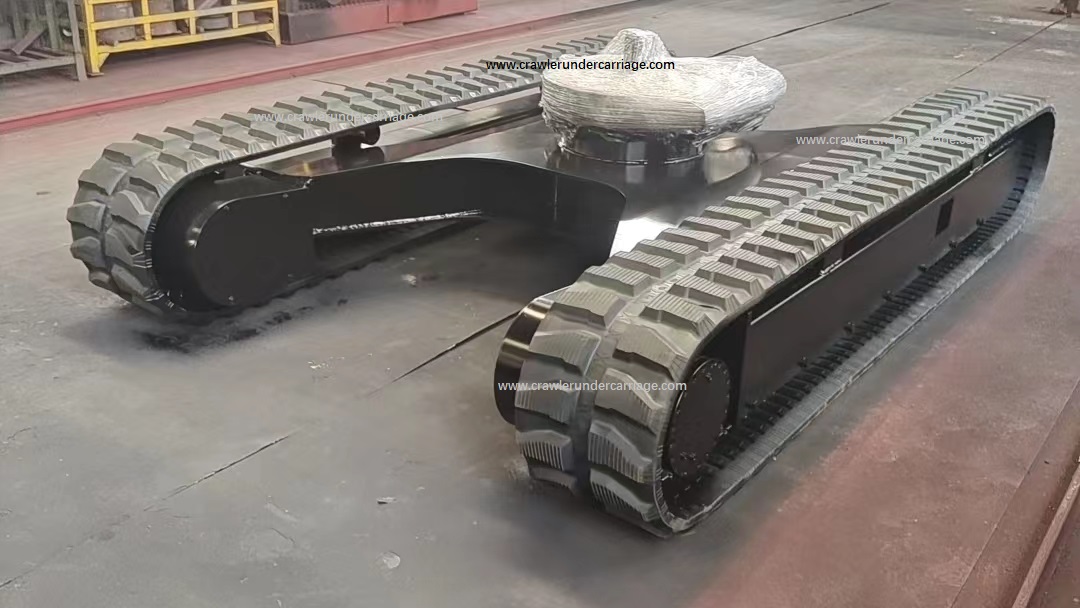

15 tons rubber track undercarriage with slewing bearing for excavator bulldozer
Product Details
1. Rubber track is special for construction machinery, there are many kinds models in market, different load capacity use different pitch. Construction rubber track is thicker than agricultural rubber track, Wear-resisting, good tensile strength, can walk in complex conditions.
2. Drive device,big load capacity equipment generally is composed of hydraulic motor, gear-box, brake, valve bank .small volume, heavy weight, big driving force,and two rubber tracks can turn at the same time, and the turning radius is small.
3. Wheel roller in good-seal, free maintenance in life, high machining accuracy, good cooperation, durable use.
4.Tension device is composed of oil cylinder,spring and other parts.By injecting butter into the cylinder, the shaft can reach the purpose of tightening, which has a cushioning effect. It has a small impact on the parts, and it is not easy to remove.
Product Parameters
| Condition: | New |
| Applicable Industries: | Excavator bulldozer |
| Video outgoing-inspection: | Provided |
| Place of Origin | Jiangsu, China |
| Brand Name | YIKANG |
| Warranty: | 1 Year or 1000 Hours |
| Certification | ISO9001:2019 |
| Load Capacity | 5 –15Tons |
| Travelling Speed (Km/h) | 0-5 |
| Undercarriage Dimensions(L*W*H)(mm) | 3255x400x653 |
| Color | Black or Custom Color |
| Supply Type | OEM/ODM Custom Service |
| Material | Steel |
| MOQ | 1 |
| Price: | Negotiation |
Standard Specification / Chassis Parameters
| Rubber Track Undercarriage | |||||||
| Type | Parameters（mm) | Climbing Ability | Travel Speed（km/h） | Bearing(Kg) | |||
| A | B | C | D | ||||
| SJ80A | 1200 | 860 | 180 | 340 | 30° | 2-4 | 800 |
| SJ100A | 1435 | 1085 | 200 | 365 | 30° | 2-4 | 1500 |
| SJ200A | 1860 | 1588 | 250 | 420 | 30° | 2-4 | 2000 |
| SJ250A | 1855 | 1630 | 250 | 412 | 30° | 2-4 | 2500 |
| SJ300A | 1800 | 1338 | 300 | 485 | 30° | 2-4 | 3000 |
| SJ400A | 1950 | 1488 | 300 | 485 | 30° | 2-4 | 4000 |
| SJ500A | 2182 | 1656 | 350 | 540 | 30° | 2-4 | 5000-6000 |
| SJ700A | 2415 | 1911 | 300 | 547 | 30° | 2-4 | 6000-7000 |
| SJ800A | 2480 | 1912 | 400 | 610 | 30° | 2-4 | 8000-9000 |
| SJ1000A | 3255 | 2647 | 400 | 653 | 30° | 2-4 | 10000-13000 |
| SJ1500A | 3255 | 2647 | 400 | 653 | 30° | 1.5 | 15000-18000 |
| The rubber track undercarriage mentioned above is single-sided by default; if you require another method of connection, add material costs in addition! China brand or other brand motors can be freely chosen, and they can be tailored to the customer's external measurements. Slewing bearings or slewing mechanisms, as well as central slewing joint, can be installed. | |||||||
Application Scenarios
1. Drill Class：anchor rig、water-well rig、core drilling rig、Jet grouting rig、down-the-hole drill、crawler hydraulic drilling rig、pipe roof rigs and other trenchless rigs.
2. Construction Machinery Class: mini- excavators、mini piling machine、 exploration machine、aerial work platforms、small loading equipment, etc.
3. Coal Mining Class：grilled slag machine、 tunnel drilling、 hydraulic drilling rig,、hydraulic drilling machines and rock loading machine etc
4. Mine Class： mobile crushers、heading machine、transport equipment, etc.
Packaging & Delivery
YIKANG track roller packing: Standard wooden pallet or wooden case
Port : Shanghai or Customer requirements.
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.
| Quantity(sets) | 1 - 1 | 2 - 3 | >3 |
| Est. Time(days) | 20 | 30 | To be negotiated |
One- Stop Solution
Our company has a complete product category which means you can find everything you need here. Such as rubber track undercarriage, steel track undercarriage, track roller、top roller、front idler、sprocket、rubber track pads or steel track etc.
With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
