Custom extendable crawler undercarriage for carry 2.5 ton drilling rig
Product Details
Our company can supply extendable crawler undercarriage.
An extendable crawler undercarriage will provide better stability.
The extendable crawler system takes up less space and allows easy passage through narrow passages.
Our company develops, produces and supplies rubber track undercarriages for a very wide range of applications. So rubber track undercarriages are often used in agriculture, industry and construction.
The rubber track undercarriage is stable on all roads. Rubber tracks are highly mobile and stable, ensuring effective and safe work.
YIJIANG company customized this new extendable rubber track undercarriage for drilling rig machine, its carrying capacity is 2.5 tons. The width of this undercarriage is 1.4 meters and can be extended till to 1.7meters.
Product Parameters
| Condition: | New |
| Applicable Industries: | Crawler Machinery |
| Video outgoing-inspection: | Provided |
| Place of Origin | Jiangsu, China |
| Brand Name | YIKANG |
| Warranty: | 1 Year or 1000 Hours |
| Certification | ISO9001:2019 |
| Load Capacity | 1 –15Tons |
| Travelling Speed (Km/h) | 0-2.5 |
| Undercarriage Dimensions(L*W*H)(mm) | 2010x1700x485 |
| Color | Black or Custom Color |
| Supply Type | OEM/ODM Custom Service |
| Material | Steel/Rubber |
| MOQ | 1 |
| Price: | Negotiation |
Undercarriage Drawing
Standard Specification
| Type |
Parameters（mm) |
Track Varieties |
Bearing(Kg) |
||||
|
A(length) |
B(center distance) |
C(total width) |
D(width of track) |
E (height) |
|||
| SJ080 | 1240 | 940 | 900 | 180 | 300 | rubber track | 800 |
| SJ050 | 1200 | 900 | 900 | 150 | 300 | rubber track | 500 |
| SJ100 | 1380 | 1080 | 1000 | 180 | 320 | rubber track | 1000 |
| SJ150 | 1550 | 1240 | 1000 | 200 | 350 | rubber track | 1300-1500 |
| SJ200 | 1850 | 1490 | 1300 | 250 | 400 | rubber track | 1500-2000 |
| SJ250 | 1930 | 1570 | 1300 | 250 | 450 | rubber track | 2000-2500 |
| SJ300A | 2030 | 1500 | 1600 | 300 | 480 | rubber track | 3000-4000 |
| SJ400A | 2166 | 1636 | 1750 | 300 | 520 | rubber track | 4000-5000 |
| SJ500A | 2250 | 1720 | 1800 | 300 | 535 | rubber track | 5000-6000 |
| SJ700A | 2812 | 2282 | 1850 | 350 | 580 | rubber track | 6000-7000 |
| SJ800A | 2880 | 2350 | 1850 | 400 | 580 | rubber track | 7000-8000 |
| SJ1000A | 3500 | 3202 | 2200 | 400 | 650 | rubber track | 9000-10000 |
| SJ1500A | 3800 | 3802 | 2200 | 500 | 700 | rubber track | 13000-15000 |
Packaging & Delivery

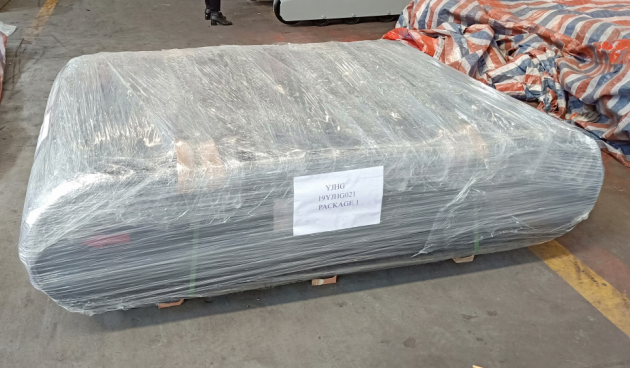

YIKANG track roller packing: Standard wooden pallet or wooden case
Port : Shanghai or Customer requirements.
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.
| Quantity(sets) | 1 - 1 | 2 - 3 | >3 |
| Est. Time(days) | 20 | 30 | To be negotiated |
One- Stop Solution
Our company has a complete product category which means you can find everything you need here. Such as rubber track undercarriage, steel track undercarriage, track roller、top roller、front idler、sprocket、rubber track pads or steel track etc.
With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
