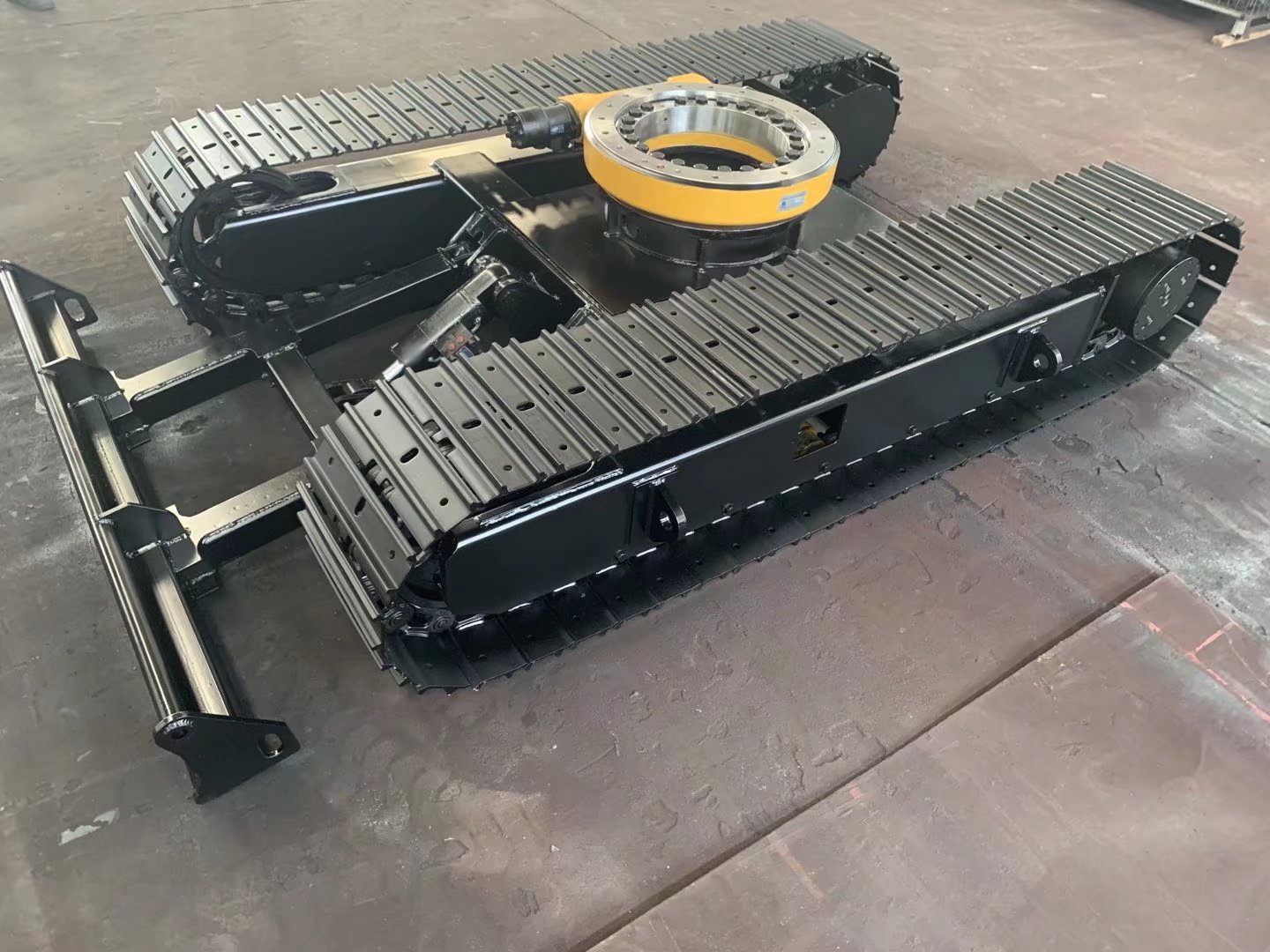

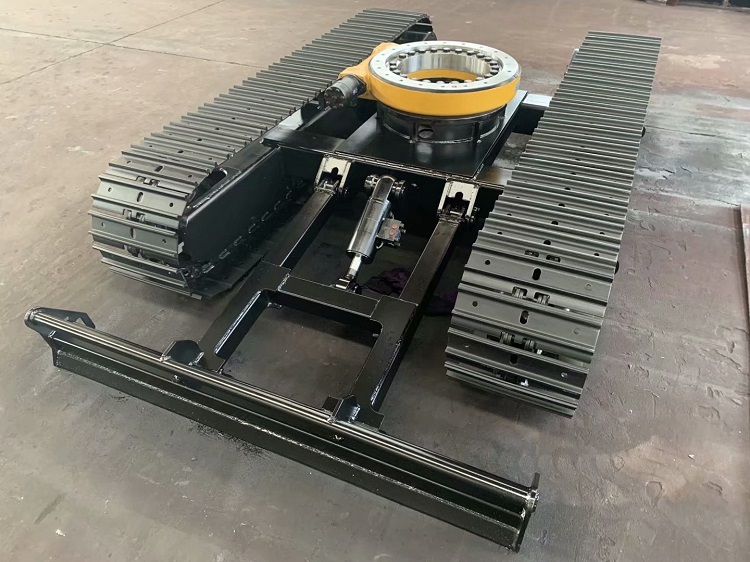

Custom steel track undercarriage with slewing bearing and dozer blade for prospecting machinery
Product Details
1. The undercarriage has forward, backward and turning function while undertaking the machine
2. The steel track is very hard and durable by quenching treatment.
The rubber track is embedded with the iron core and steel cord, which help the machine to walk fast with low running noise, no damage to the pavement and less vibration.
3. Built with a low speed high torque motor and gear-box, the undercarriage can walk fast.
4. The frame is high intensity and strong tenacity.
Product Parameters
| Condition: | New |
| Applicable Industries: | Excavator bulldozer |
| Video outgoing-inspection: | Provided |
| Place of Origin | Jiangsu, China |
| Brand Name | YIKANG |
| Warranty: | 1 Year or 1000 Hours |
| Certification | ISO9001:2019 |
| Load Capacity | 1 –10Tons |
| Travelling Speed (Km/h) | 0-5 |
| Undercarriage Dimensions(L*W*H)(mm) | 2250x300x535 |
| Color | Black or Custom Color |
| Supply Type | OEM/ODM Custom Service |
| Material | Steel |
| MOQ | 1 |
| Price: | Negotiation |
Standard Specification / Chassis Parameters
| Steel Track Undercarriage | |||||||
| Type | Parameters（mm) | Climbing Ability | Travel Speed（km/h） | Bearing(Kg) | |||
| A | B | C | D | ||||
| SJ200B | 1545 | 1192 | 230 | 370 | 30° | 2-4 | 1000-2000 |
| SJ300B | 2000 | 1559 | 300 | 470 | 30° | 2-4 | 3000 |
| SJ400B | 1998 | 1562 | 300 | 475 | 30° | 2-4 | 4000 |
| SJ600B | 2465 | 1964 | 350 | 515 | 30° | 1.5 | 5000-6000 |
| SJ800B | 2795 | 2236 | 400 | 590 | 30° | 1.5 | 7000-8000 |
| SJ1000B | 3000 | 2385 | 400 | 664 | 30° | 1.5 | 10000 |
| SJ1500B | 3203 | 2599 | 450 | 664 | 30° | 1.5 | 12000-15000 |
| SJ2000B | 3480 | 2748 | 500 | 753 | 30° | 1.5-2 | 20000-25000 |
| SJ3000B | 3796 | 3052 | 500 | 838 | 30° | 1.5-2 | 30000-35000 |
| SJ3500B | 4255 | 3500 | 500 | 835 | 30° | 0.8 | 31000-35000 |
| SJ4500B | 4556 | 3753 | 500 | 858 | 30° | 0.8-2 | 40000-45000 |
| SJ5000B | 4890 | 4180 | 500 | 930 | 30° | 0.8-2 | 50000-55000 |
| SJ6000B | 4985 | 4128 | 500 | 888 | 30° | 0.8 | 60000-65000 |
| SJ7000B | 5042 | 4151 | 500 | 1000 | 30° | 0.8 | 70000 |
| SJ10000B | 5364 | 4358 | 650 | 1116 | 30° | 0.8 | 100000 |
| SJ12000B | 6621 | 5613 | 700 | 1114 | 30° | 0.8 | 120000 |
| The steel track undercarriage mentioned above is single-sided by default; if you require another method of connection, add material costs in addition! Depending on the customer's given external dimensions, either a domestic or imported motor may be chosen at random. The addition of a slewing bearing or slewing mechanism, a central swivel joint, etc. The steel track can have rubber blocks placed to it to safeguard the road's surface. | |||||||
Application Scenarios
1. Drill Class：anchor rig、water-well rig、core drilling rig、Jet grouting rig、down-the-hole drill、crawler hydraulic drilling rig、pipe roof rigs and other trenchless rigs.
2. Construction Machinery Class: mini- excavators、mini piling machine、 exploration machine、aerial work platforms、small loading equipment, etc.
3. Coal Mining Class：grilled slag machine、 tunnel drilling、 hydraulic drilling rig,、hydraulic drilling machines and rock loading machine etc
4. Mine Class： mobile crushers、heading machine、transport equipment, etc.
Packaging & Delivery
YIKANG track roller packing: Standard wooden pallet or wooden case
Port : Shanghai or Customer requirements.
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.
| Quantity(sets) | 1 - 1 | 2 - 3 | >3 |
| Est. Time(days) | 20 | 30 | To be negotiated |
One- Stop Solution
Our company has a complete product category which means you can find everything you need here. Such as rubber track undercarriage, steel track undercarriage, track roller、top roller、front idler、sprocket、rubber track pads or steel track etc.
With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
