Customized quality crawler undercarriage rubber track chassis for excavator drilling mining screening machine

Short Description:

Introducing Yijiang’s customized crusher track undercarriage, the perfect solution for heavy-duty crushing operations. Our track-mounted undercarriage is designed to provide the crusher with superior support and maneuverability, ensuring smooth and efficient performance in challenging terrain.




Product Detail

Product Tags

Product Description

Quick Details

Condition New
Applicable Industries Mobile Cruher
Video outgoing-inspection Provided
Place of Origin Jiangsu, China
Brand Name YIKANG
Warranty 1 Year or 1000 Hours
Certification ISO9001:2019
Load Capacity 20 – 150 Tons
Travelling Speed (Km/h) 0-2.5
Undercarriage Dimensions(L*W*H)(mm) 3805X2200X720
Width of Steel Track(mm) 500
Color Black or Custom Color
Supply Type OEM/ODM Custom Service
Material Steel
MOQ 1
Price: Negotiation

Composition Of Crawler Underframe

A. Track shoes

B. Main link

C. Track link

D. Wear plate

E. Track side beam

F. Balance valve

G. Hydraulic motor

H. Motor reducer

I. Sprocket

J. Chain guard

K. Grease nipple and sealing ring

L. Front Idler

M. Tension spring/Recoil spring

N. Adjusting cylinder

O. Track roller

Mobile Steel Track Undercarriage Advantages

1. ISO9001 quality certificate

2. Complete track undercarriage with steel track or rubber track, track link , final drive, hydraulic motors, rollers, crossbeam.

3. Drawings of track undercarriage are welcome.

4. Loading capacity can be from 20T to 150T.

5. We can supply both rubber track undercarriage and steel track undercarriage.

6. We can design track undercarriage from customers’ requirements.

7. We can recommend and assemble the motor & drive equipment as customers’ requests. We can also design the whole undercarriage according to special requirements, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.

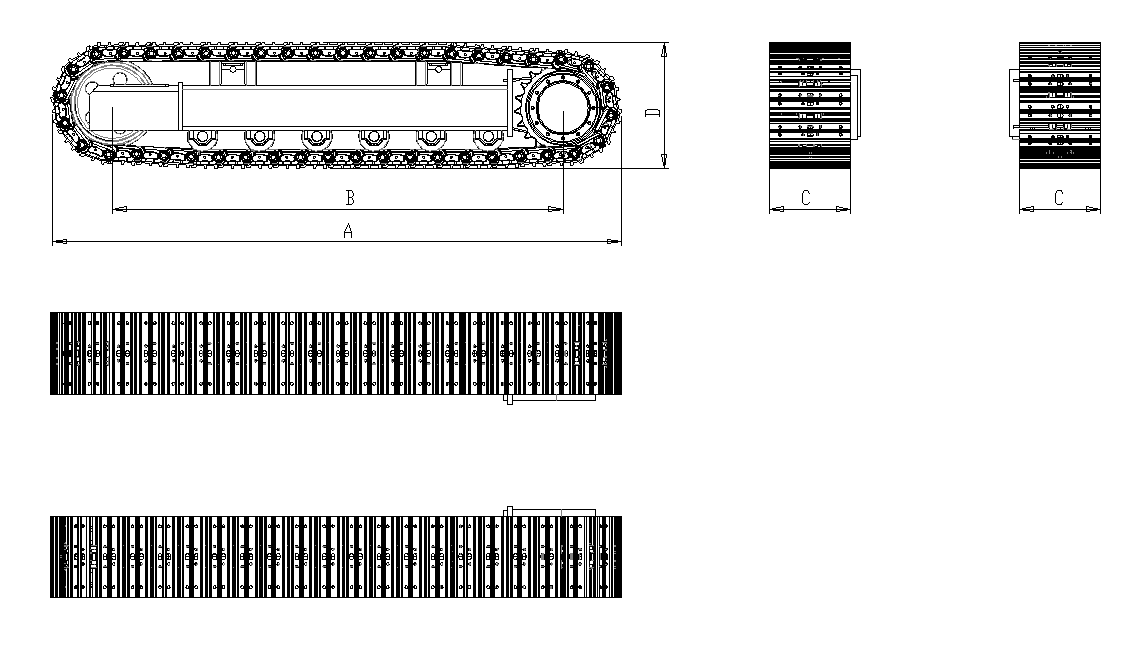

Parameter

Type

Parametersmm)

Track Varieties

Bearing(Kg)

A(length)

B(center distance)

C(total width)

D(width of track)

E (height)

SJ2000B

3805

3300

2200

500

720

steel track

18000-20000

SJ2500B

4139

3400

2200

500

730

steel track

22000-25000

SJ3500B

4000

3280

2200

500

750

steel track

30000-40000

SJ4500B

4000

3300

2200

500

830

steel track

40000-50000

SJ6000B

4500

3800

2200

500

950

steel track

50000-60000

SJ8000B

5000

4300

2300

600

1000

steel track

80000-90000

SJ10000B

5500

4800

2300

600

1100

steel track

100000-110000

SJ12000B

5500

4800

2400

700

1200

steel track

120000-130000

SJ15000B

6000

5300

2400

900

1400

steel track

140000-150000

Application Scenario

Our custom crusher track undercarriage are expertly designed to meet the needs of the crushing industry. With its sturdy structure and durable materials, it can easily withstand the weight and movement of a heavy-duty crusher, providing a stable and reliable foundation for its operation. The undercarriage is also designed to minimize vibration and noise, resulting in a safer and more comfortable work environment.

Versatility is key when it comes to our crusher track undercarriages. It can be fully customized to suit specific requirements, including different track widths, lengths and configurations. This integrates seamlessly with a variety of crusher models and ensures a perfect fit for any application. Whether it's a mobile or stationary crusher, our track-mounted undercarriage can adapt to different setups, providing exceptional versatility and flexibility for your crushing needs.

In addition to their ruggedness and versatility, our custom crusher track undercarriages are easy to maintain. With easy access points and high-quality components, it requires minimal maintenance, reducing downtime and operating costs for crushing operations.

At Yijiang Company, we pride ourselves on providing quality products that exceed our customers' expectations. Our custom crusher track chassis is no exception. With our commitment to excellence and years of expertise in undercarriage solutions, we believe our products will enhance the performance and efficiency of your crushing equipment.

When it comes to reliable and durable crusher undercarriage solutions, Yijiang's custom crusher track undercarriage is the ultimate choice. Trust our expertise and experience to take your crushing operations to the next level.

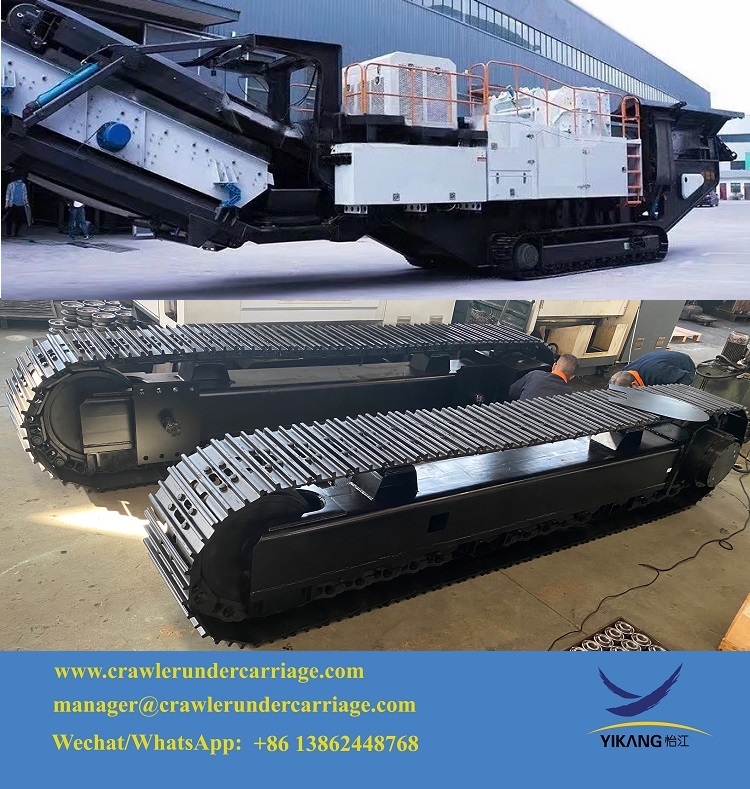

Crusher undercarriage

Packaging & Delivery

YIJIANG Packaging

YIKANG track undercarriage packing:  Steel pallet with wrapping fill, or Standard wooden pallet.

Port:  Shanghai or custom requirements

Mode of Transportation: ocean shipping, air freight, land transportation.

If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets) 1 - 1 2 - 3 >3
Est. Time(days) 20 30 To be negotiated

One- Stop Solution

Our company has a complete product category which means you can find everything you need here. Such as track roller, top roller, idler, sprocket, tension device, rubber track or steel track etc.

With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
