Factory 6 tons steel crawler undercarriage chassis for transport vehicle drilling rig
Product Details
Transport vehicle undercarriage belongs to a relatively simple structure of the undercarriage, mainly composed of two unilateral undercarriage and beam.
Yijiang company undercarriage is composed of hydraulic walking reducer (Walking Motor Assembly),steel(rubber)track,link assembly, sprocket,idler,track roller,top roller,tension device.It has the characteristics of compact structure, reliable performance, durability, convenient operation, simple maintenance, less energy consumption, good economy and so on.It is suitable for anchoring drilling machine, well drilling machine, rotary jet drilling machine, subsurface drilling machine, tunnel drilling machine, horizontal directional drilling, excavator, raking machine, boring machine, high-altitude working platform, agricultural machinery and other fields.
We have several advantages:
1. We have achiieved ISO9001 quality certificate.
2. We can supply both rubber track undercarriage and steel track undercarriage.
3. We can recommend and assemble the suitable motor & drive equipment for customers.
4. we are professional to design the whole undercarriage according customers´ different requirement such as measurements,carrying capacity,climbing etc.
5. Which facilitate customers to place a one - time installal.

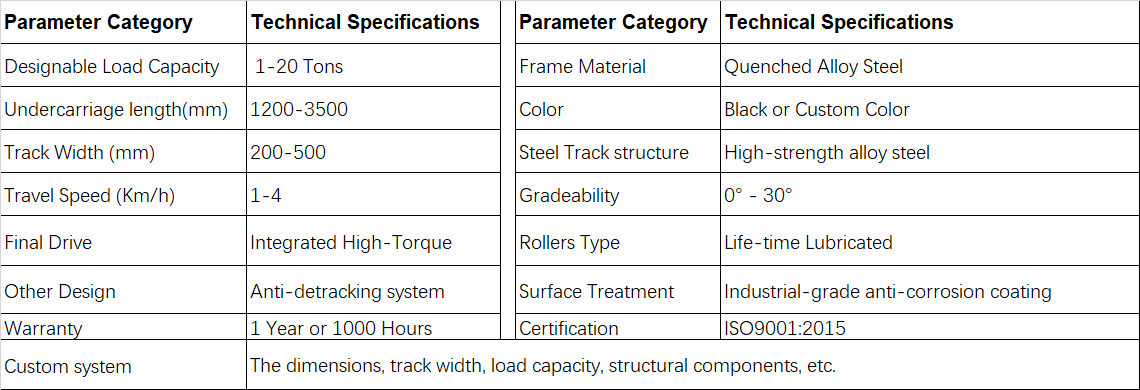

Product Parameters
| Condition: | New |
| Applicable Industries: | vehicle |
| Video outgoing-inspection: | Provided |
| Place of Origin | Jiangsu, China |
| Brand Name | YIKANG |
| Warranty: | 1 Year or 1000 Hours |
| Certification | ISO9001:2019 |
| Load Capacity | 3-10Tons |
| Travelling Speed (Km/h) | 0-10 |
| Undercarriage Dimensions(L*W*H)(mm) | 2250x300x535 |
| Color | Black or Custom Color |
| Supply Type | OEM/ODM Custom Service |
| Material | Steel |
| MOQ | 1 |
| Price: | Negotiation |
Standard Specification / Chassis Parameters
|
Type |
Parameters（mm) |
Track Varieties |
Bearing(Kg) |
||||
|
A(length) |
B(center distance) |
C(total width) |
D(width of track) |
E (height) |
|||
|
SJ080 |
1240 |
940 |
900 |
180 |
300 |
rubber track |
800 |
|
SJ050 |
1200 |
900 |
900 |
150 |
300 |
rubber track |
500 |
|
SJ100 |
1380 |
1080 |
1000 |
180 |
320 |
rubber track |
1000 |
|
SJ150 |
1550 |
1240 |
1000 |
200 |
350 |
rubber track |
1300-1500 |
|
SJ200 |
1850 |
1490 |
1300 |
250 |
400 |
rubber track |
1500-2000 |
|
SJ250 |
1930 |
1570 |
1300 |
250 |
450 |
rubber track |
2000-2500 |
|
SJ300A/B |
2030 |
1500 |
1600 |
300 |
480 |
rubber/steel track |
3000-4000 |
|
SJ400A/B |
2166 |
1636 |
1750 |
300 |
520 |
rubber/steel track |
4000-5000 |
|
SJ500A/B |
2250 |
1720 |
1800 |
300 |
535 |
rubber/steel track |
5000-6000 |
|
SJ700A/B |
2812 |
2282 |
1850 |
350 |
580 |
rubber/steel track |
6000-7000 |
|
SJ800A/B |
2880 |
2350 |
1850 |
400 |
580 |
rubber/steel track |
7000-8000 |
|
SJ1000A/B |
3500 |
3202 |
2200 |
400 |
650 |
rubber/steel track |
9000-10000 |
|
SJ1500A/B |
3800 |
3802 |
2200 |
500 |
700 |
rubber/steel track |
13000-15000 |
Application Scenarios
1. Drill Class：anchor rig、water-well rig、core drilling rig、Jet grouting rig、down-the-hole drill、crawler hydraulic drilling rig、pipe roof rigs and other trenchless rigs.
2. Construction Machinery Class: mini- excavators、mini piling machine、 exploration machine、aerial work platforms、small loading equipment, etc.
3. Coal Mining Class：grilled slag machine、 tunnel drilling、 hydraulic drilling rig,、hydraulic drilling machines and rock loading machine etc
4. Mine Class： mobile crushers、heading machine、transport equipment, etc.
5. Transport vehicle
Packaging & Delivery
YIKANG track roller packing: Standard wooden pallet or wooden case
Port : Shanghai or Customer requirements.
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.
| Quantity(sets) | 1 - 1 | 2 - 3 | >3 |
| Est. Time(days) | 20 | 30 | To be negotiated |
One- Stop Solution
Our company has a complete product category which means you can find everything you need here. Such as rubber track undercarriage, steel track undercarriage, track roller、top roller、front idler、sprocket、rubber track pads or steel track etc.
With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
