Factory source Small Rubber Track Systems - Custom extendable crawler undercarriage for carry 2.5 ton drilling rig – YIJIANG

Factory source Small Rubber Track Systems - Custom extendable crawler undercarriage for carry 2.5 ton drilling rig – YIJIANG Featured Image
  • Factory source Small Rubber Track Systems - Custom extendable crawler undercarriage for carry 2.5 ton drilling rig – YIJIANG

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

Our company puts emphasis on the management, the introduction of talented personnel, and the construction of staff building, trying hard to improve the quality and liability consciousness of staff members. Our company successfully attained IS9001 Certification and European CE Certification of Mst300 Top Roller , Undercarriage For Mini Dumper , Excavator Track Frame , We play a leading role in providing customers with high quality products good service and competitive prices.
Factory source Small Rubber Track Systems - Custom extendable crawler undercarriage for carry 2.5 ton drilling rig – YIJIANG Detail:

Product Details

Our company can supply extendable crawler undercarriage.
An extendable crawler undercarriage will provide better stability.
The extendable crawler system takes up less space and allows easy passage through narrow passages.
Our company develops, produces and supplies rubber track undercarriages for a very wide range of applications. So rubber track undercarriages are often used in agriculture, industry and construction.
The rubber track undercarriage is stable on all roads. Rubber tracks are highly mobile and stable, ensuring effective and safe work.

YIJIANG company customized this new extendable rubber track undercarriage for drilling rig machine, its carrying capacity is 2.5 tons. The width of this undercarriage is 1.4 meters and can be extended till to 1.7meters.

Product Parameters

Condition: New
Applicable Industries: Crawler Machinery
Video outgoing-inspection: Provided
Place of Origin Jiangsu, China
Brand Name YIKANG
Warranty:   1 Year or 1000 Hours
Certification ISO9001:2019
Load Capacity 1 –15Tons
Travelling Speed (Km/h) 0-2.5
Undercarriage Dimensions(L*W*H)(mm) 2010x1700x485
Color Black or Custom Color
Supply Type OEM/ODM Custom Service
Material Steel/Rubber
MOQ 1
Price: Negotiation

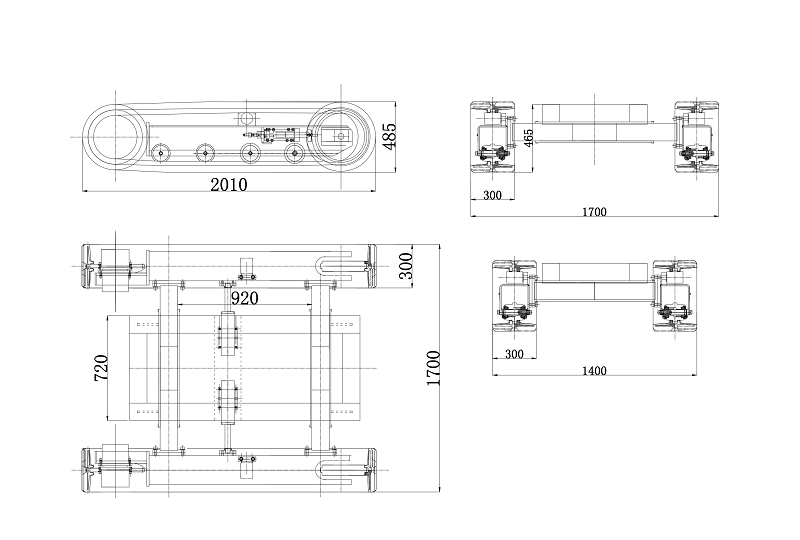

Undercarriage Drawing

undercarriage drawing

Standard Specification


See the full table here

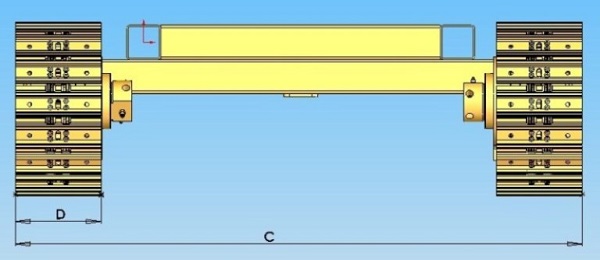

track undercarriage

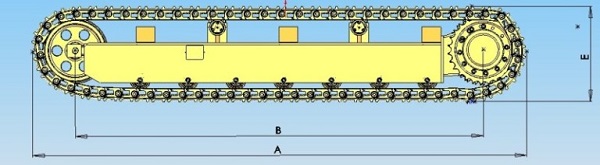

tracked undercarriage

Type

Parameters（mm)

Track Varieties

Bearing(Kg)

A(length)

B(center distance)

C(total width)

D(width of track)

E (height)
SJ080 1240 940 900 180 300 rubber track 800
SJ050 1200 900 900 150 300 rubber track 500
SJ100 1380 1080 1000 180 320 rubber track 1000
SJ150 1550 1240 1000 200 350 rubber track 1300-1500
SJ200 1850 1490 1300 250 400 rubber track 1500-2000
SJ250 1930 1570 1300 250 450 rubber track 2000-2500
SJ300A 2030 1500 1600 300 480 rubber track 3000-4000
SJ400A 2166 1636 1750 300 520 rubber track 4000-5000
SJ500A 2250 1720 1800 300 535 rubber track 5000-6000
SJ700A 2812 2282 1850 350 580 rubber track 6000-7000
SJ800A 2880 2350 1850 400 580 rubber track 7000-8000
SJ1000A 3500 3202 2200 400 650 rubber track 9000-10000
SJ1500A 3800 3802 2200 500 700 rubber track 13000-15000

Packaging & Delivery

One- Stop Solution

Product detail pictures:

Factory source Small Rubber Track Systems - Custom extendable crawler undercarriage for carry 2.5 ton drilling rig – YIJIANG detail pictures

Related Product Guide:
Our mission is usually to turn into an innovative provider of high-tech digital and communication devices by providing worth added design and style, professional producing, and repair capabilities for Factory source Small Rubber Track Systems - Custom extendable crawler undercarriage for carry 2.5 ton drilling rig – YIJIANG , The product will supply to all over the world, such as: Iran, Sweden, Qatar, Good quality, Good service is always our tenet and credo. We take every effort to control the quality, package, labels etc and our QC will check every detail during producing and before shipment. We are willing to establish long business relationship with those who seek the high quality products and good service. We have set up a wide sales network across European countries, North of America, South of America, Middle East, Africa, East Asia countries.Please contact us now, you will find our professional experience and high quality grades will contribute to your business.
    • Timely delivery, strict implementation of the contract provisions of the goods, encountered special circumstances, but also actively cooperate, a trustworthy company!
    5 Stars By Astrid from India - 2017.11.20 15:58
    We feel easy to cooperate with this company, the supplier is very responsible, thanks.There will be more in-depth cooperation.
    5 Stars By Tom from Australia - 2017.07.07 13:00
