MST1500 top roller for crawler tracked dumper

Short Description:

The top roller is distributed on both sides of the tracked undercarriage, and its main functions are:

1. Support the weight of the track and the vehicle body to ensure that the track can contact the ground smoothly

2. Guide the track to run along the correct track, prevent the track from deviating from the track, and ensure the stability and handling of the vehicle.

3. A certain damping effect.

The design and layout of the roller has an important impact on the performance and life of the track chassis, so the wear resistance of the material, the strength of the structure and the accuracy of the installation need to be considered in the design and manufacturing process.

Our MST1500 top rollers are manufactured to OEM specifications and are durable, so we are able to ensure your crawler carrier dumper is replaced to the quality top rollers offered by YIJIANG.

Send email to us

Product Detail

Product Tags

Product Details

MST1500 series crawler tracked dumpers require two top rollers per side, and a total of four top rollers per machine. The rubber tracks of the MST1500 series are very heavy and its chassis is very long, so it needs extra top roller to support it compared to small equipment.

When you replace the worn MST1500 top rollers, you need to bolts to the undercarriage through a metal plate at the axle of the rollers. These bolts are not included in our products, so please keep the original bolts.

Product Parameters

Model Name	Quality Carrier roller top roller upper roller
Material	50Mn/40Mn
Color	Black or Yellow
Surface Hardness	HRC52-58
Machine type	Crawler tracked dumper
Warranty	1000 Hour
Technique	Forging, Casting, Machining, heat treatment
Certification	ISO9001-2019
Hardness Depth	5-12mm
Finish	Smooth
Condition:	100% New
Place of Origin	Jiangsu, China
Brand Name	YIKANG
MOQ	1
Price:	Negotiation

Advantages

Product Specification

Part name	Application machine model
track roller	Crawler dumper parts bottom roller MST2200VD / 2000, Verticom 6000
track roller	Crawler dumper parts bottom roller MST 1500 / TSK007
track roller	Crawler dumper parts bottom roller MST 800
track roller	Crawler dumper parts bottom roller MST 700
track roller	Crawler dumper parts bottom roller MST 600
track roller	Crawler dumper parts bottom roller MST 300
sprocket	Crawler dumper sprocket MST2200 4 pcs segment
sprocket	Crawler dumper parts sprocket MST2200VD
sprocket	Crawler dumper parts sprocket MST1500
sprocket	Crawler dumper parts sprocket MST1500VD 4 pcs segment
sprocket	Crawler dumper parts sprocket MST1500V / VD 4 pcs segment. (I.D=370mm)
sprocket	Crawler dumper parts sprocket MST800 sprockets ( HUE10230 )
sprocket	Crawler dumper parts sprocket MST800 - B ( HUE10240 )
idler	Crawler dumper parts front idler MST2200
idler	Crawler dumper parts front idler MST1500 TSK005
idler	Crawler dumper parts front idler MST 800
idler	Crawler dumper parts front idler MST 600
idler	Crawler dumper parts front idler MST 300
top roller	Crawler dumper parts top roller MST 2200
top roller	Crawler dumper parts top roller MST1500
top roller	Crawler dumper parts top roller MST800
top roller	Crawler dumper parts top roller MST300

Application Scenarios

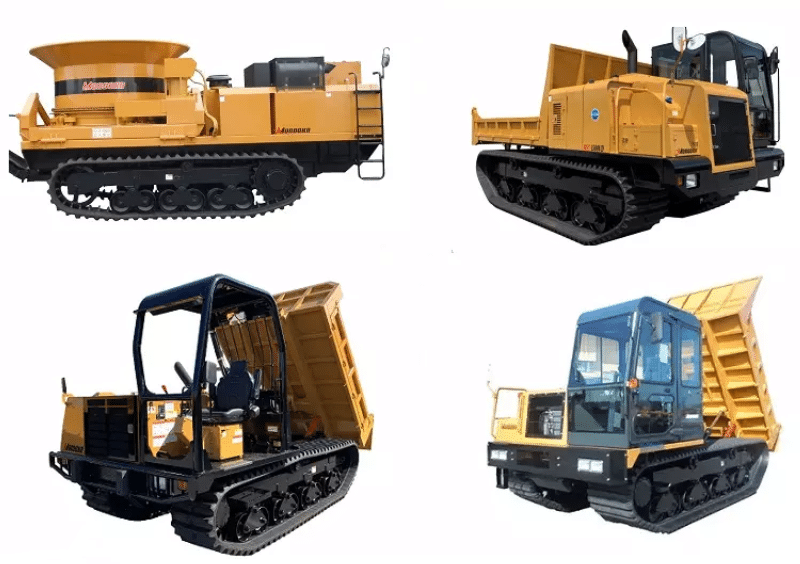

We design and manufacture a series of top rollers, that They can be applied to MST300 MST 600 MST800 MST1500 MST2200 crawler tracked dumpers.

MST1500 top roller for crawler tracked dumper (2)

OEM/ODM Custom Service

Customize your crawler track undercarriage, optimize your machinery。
We are not only customizing, but also creating with you.
We can provide the existing drawings for your reference. If you have more ideas than those, feel free to tell us.

Customization content
Customized logo	50	Set/Each Time
Customized Coulor	50	Set/Each Time
Customized packaging	50	Set/Each Time
Graphic customization	50	Set/Each Time
Supply capacity	500	Sets/One Month

Packaging & Delivery

MST800 front idler for crawler tracked dumper (3)

YIKANG rubber track packing: Bare package or Standard wooden pallet.
Port : Shanghai or Customer requirements.
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets)	1 - 1	2 - 100	>100
Est. Time(days)	20	30	To be negotiated

One- Stop Solution

Our company has a complete product category which means you can find everything you need here. Such as track roller, top roller, idler, sprocket, tension device, rubber track or steel track etc.

With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
