The undercarriage has the advantage of having a bigger ground area than the wheel type, which results in a smaller ground pressure. It also has the advantage of having a significant driving force due to its strong adherence to the road surface. The typical design for a crawler undercarriage is a tank structure, which involves placing double crawler structures with drive mechanisms on both side.

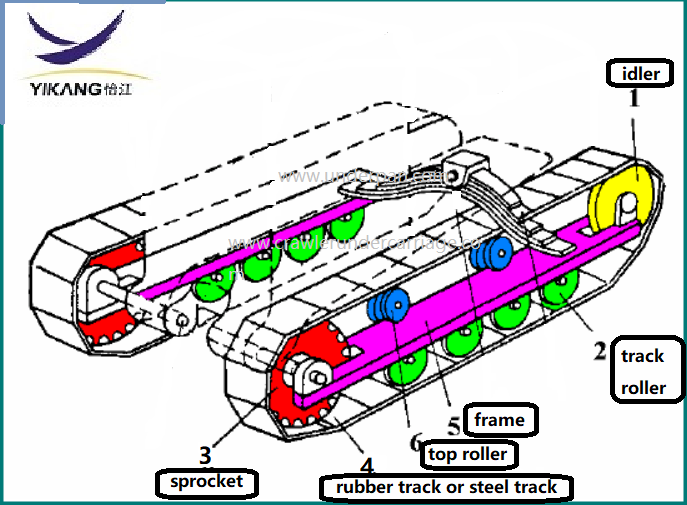

Each track undercarriage is composed of a sprocket, an idler , several track rollers and top rollers(for bigger machinery chassis) . During installation, the track on the outside is tensioned by limiting the gear train. The sprocket drives the track to move , the idler controls the track position while it is moving, the track roller supports the weight of the entire vehicle body, and the top roller supports the weight of the track.

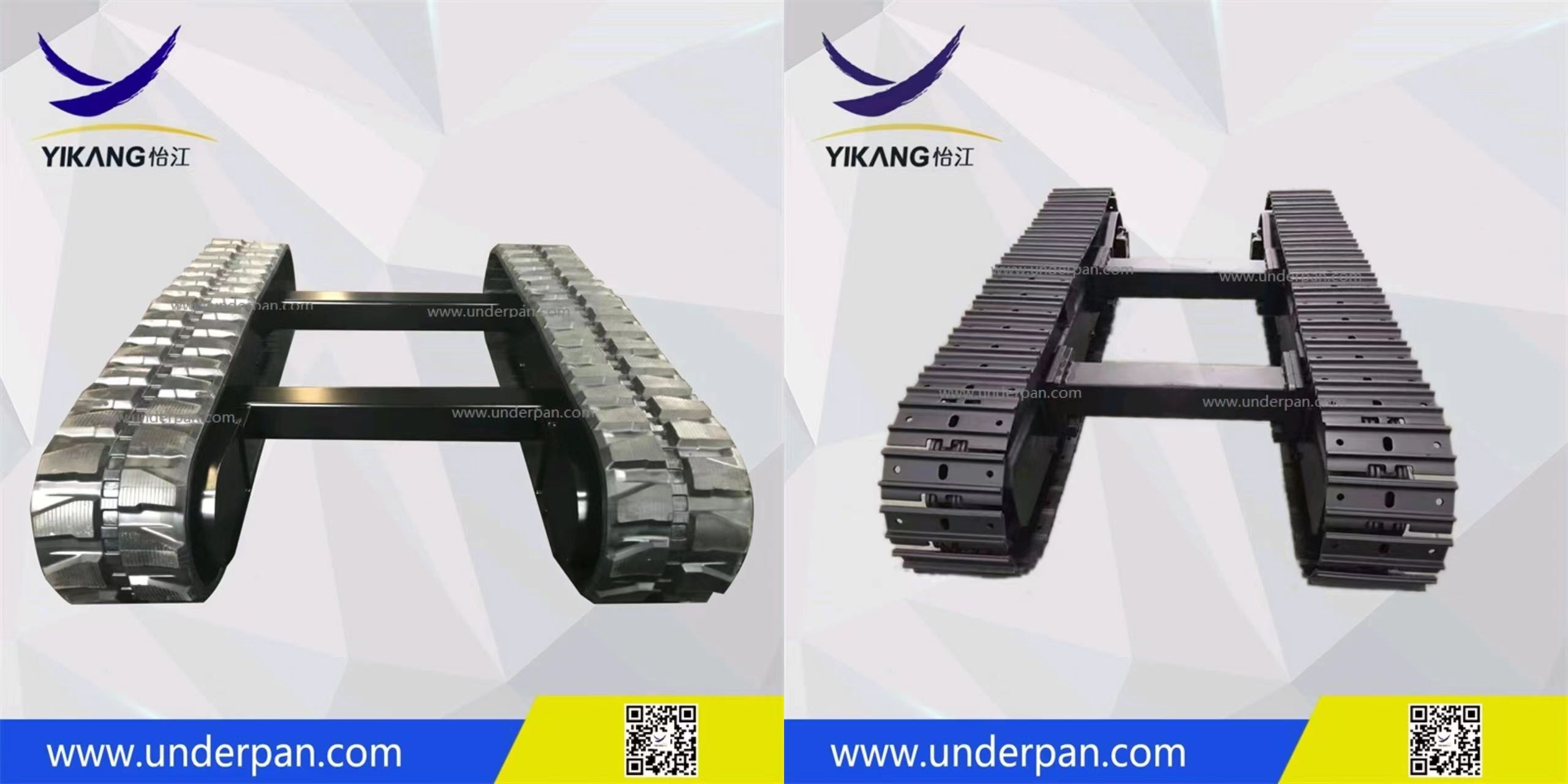

Yijiang company is specialized in customized production of construction machinery undercarriage manufacturers, including its spare parts processing and production, including track roller, front idler, sprocket, top roller and rubber track or steel track. And we can customize the chassis middle beam connectors according to your upper machine requirements.
www.crawlerundercarriage.com
Post time: Apr-11-2023
