Product Description

1.What are the advantages of choosing Yijiang crawler tracked undercarriage?

The Yijiang crawler track undercarriage can exactly satisfy the needs for typical driving on various tough working situations, such as soft soil terrain, sandy terrain, and muddy terrain, that your wheeled vehicle cannot adapt to. Because of its broad application, crawler track undercarriage are a vital part of many types of technical and agricultural equipment, offering dependable assistance for activities in a variety of challenging environments. The crawler track undercarriage may offer superior grip and stability, improve the machine's ability to drive on hills and slopes, improve its floating ability, and have durability and wear resistance, all of which contribute to the machine's overall safety and stability when in use.

Therefore, Yijiang Machinery specializes in customizing a range of crawler track undercarriage systems that are going to be essential parts of heavy-duty equipment including bulldozers, tractors, and excavators. Hence, we will assist you in selecting the undercarriage that fits your vehicle.

2. What kind of machines can Yijiang crawler track undercarriage be used on?

More precisely, they can be put on the following kinds of machines in order to satisfy the various needs of consumers.

Excavators, loaders, bulldozers, various drilling rigs, firefighting robots, equipment for dredging rivers and seas, aerial working platforms, transportation and lifting equipment, prospecting machinery, loaders, static contactors, rock drills, anchor machines, and other large, medium, and small-sized machinery are all included in the category of construction machinery.

Equipment for agriculture, harvesters, and composters.

The YIJIANG business manufactures a wide variety of crawler track undercarriage that fit a variety of machinery types. extensively utilized in a variety of drilling rigs, field construction equipment, agricultural, gardening, and special operation machinery.

3. Why should I choose Yijiang crawler tracked undercarriage?

Zhenjiang Yijiang Machinery Co., Ltd. has been designing and manufacturing crawler undercarriages for 19 years. Clients from all around the world have used it to effectively complete the renovation and modernization of their machinery and equipment.

Yijiang crawler track undercarriage can support loads ranging from 500 kg to 30 tons. A plethora of styles and drawings are available for selection, and chassis specs can also be supplied. Our engineering staff will meticulously plan, create designs, and build a special chassis to fulfill your desire to be able to travel the world with your machine.

4. What parameters are provided that will facilitate the rapid delivery of your order?

In order to recommend a suitable drawing and quotation to you , we need to know:

a. Rubber track or steel track undercarriage, and need the middle frame.

b. Machine weight and undercarriage weight.

c. Loading capacity of the track undercarriage ( the weight of the whole machine excluding of track undercarriage）.

d. Undercarriage’s length, width and height

e. Track’s Width.

f. The max speed (KM/H).

g. Climbing slope angle.

h. The machine’s apply range , working environment.

i. Order quantity.

j. Port of destination.

k. Whether you require us to purchase or collocate relevant motor and gear box or not, or other special request.

Parameter

See the full table here

Rubber Track Undercarriage
Type	Parameters（mm)				Climbing Ability	Travel Speed（km/h）	Bearing(Kg)
Type	A	B	C	D	Climbing Ability	Travel Speed（km/h）	Bearing(Kg)
SJ80A	1200	860	180	340	30°	2-4	800
SJ100A	1435	1085	200	365	30°	2-4	1500
SJ200A	1860	1588	250	420	30°	2-4	2000
SJ250A	1855	1630	250	412	30°	2-4	2500
SJ300A	1800	1338	300	485	30°	2-4	3000
SJ400A	1950	1488	300	485	30°	2-4	4000
SJ500A	2182	1656	350	540	30°	2-4	5000-6000
SJ700A	2415	1911	300	547	30°	2-4	6000-7000
SJ800A	2480	1912	400	610	30°	2-4	8000-9000
SJ1000A	3255	2647	400	653	30°	2-4	10000-13000
SJ1500A	3255	2647	400	653	30°	1.5	15000-18000
The rubber track undercarriage mentioned above is single-sided by default; if you require another method of connection, add material costs in addition! China brand or other brand motors can be freely chosen, and they can be tailored to the customer's external measurements. Slewing bearings or slewing mechanisms, as well as central slewing joint, can be installed.

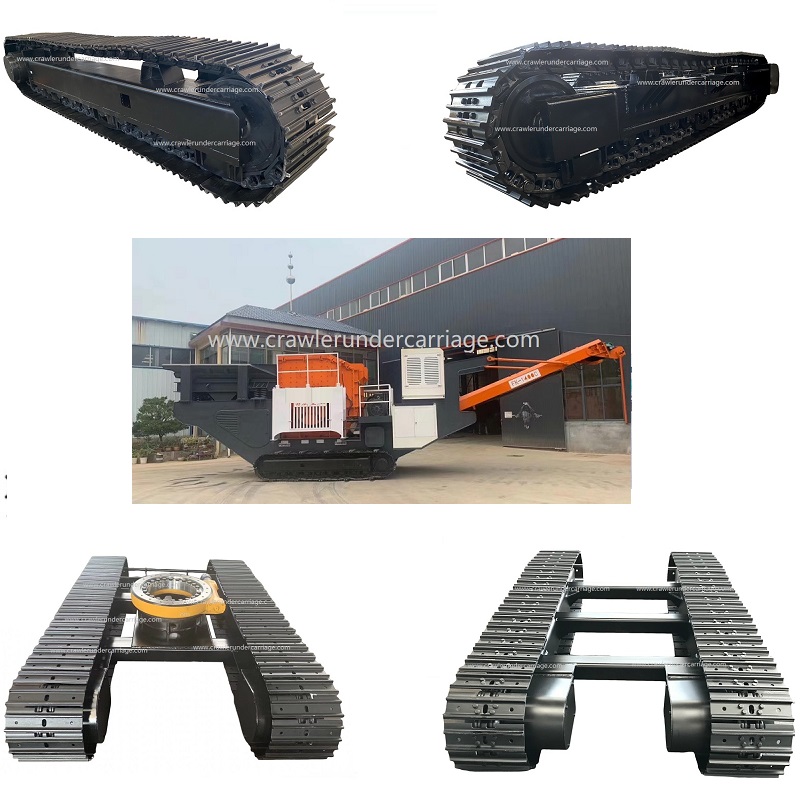

Steel Track Undercarriage
Type	Parameters（mm)				Climbing Ability	Travel Speed（km/h）	Bearing(Kg)
Type	A	B	C	D	Climbing Ability	Travel Speed（km/h）	Bearing(Kg)
SJ200B	1545	1192	230	370	30°	2-4	1000-2000
SJ300B	2000	1559	300	470	30°	2-4	3000
SJ400B	1998	1562	300	475	30°	2-4	4000
SJ600B	2465	1964	350	515	30°	1.5	5000-6000
SJ800B	2795	2236	400	590	30°	1.5	7000-8000
SJ1000B	3000	2385	400	664	30°	1.5	10000
SJ1500B	3203	2599	450	664	30°	1.5	12000-15000
SJ2000B	3480	2748	500	753	30°	1.5-2	20000-25000
SJ3000B	3796	3052	500	838	30°	1.5-2	30000-35000
SJ3500B	4255	3500	500	835	30°	0.8	31000-35000
SJ4500B	4556	3753	500	858	30°	0.8-2	40000-45000
SJ5000B	4890	4180	500	930	30°	0.8-2	50000-55000
SJ6000B	4985	4128	500	888	30°	0.8	60000-65000
SJ7000B	5042	4151	500	1000	30°	0.8	70000
SJ10000B	5364	4358	650	1116	30°	0.8	100000
SJ12000B	6621	5613	700	1114	30°	0.8	120000
The steel track undercarriage mentioned above is single-sided by default; if you require another method of connection, add material costs in addition! Depending on the customer's given external dimensions, either a domestic or imported motor may be chosen at random. The addition of a slewing bearing or slewing mechanism, a central swivel joint, etc. The steel track can have rubber blocks placed to it to safeguard the road's surface.

Application Scenario

YIKANG complete undercarriages are engineered and designed in many configurations to serve a wide range of applications.

Our company designs, customizes and produces all kinds of crawler track complete undercarriage for loads of 0.8 tons to 150tons. Crawler tracks undercarriages are suitable for roads of mud and sand, stones rock and boulders , and steel tracks are stable on every road.

Compared with rubber track, rail has abrasion resistance and little risk of fracture.

Customized packing and shipping

YIKANG track undercarriage packing: Steel pallet with wrapping fill, or Standard wooden pallet.

Port: Shanghai or custom requirements

Mode of Transportation: ocean shipping, air freight, land transportation.

If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets)	1 - 1	2 - 3	>3
Est. Time(days)	20	30	To be negotiated

Yijiang company can custom Rubber and Steel Track Undercarriage for your machine

1. ISO9001 quality certificate

2. Complete track undercarriage with steel track or rubber track, track link , final drive, hydraulic motors, rollers, crossbeam.

3. Drawings of track undercarriage are welcome.

4. Loading capacity can be from 0.5T to 150T.

5. We can supply both rubber track undercarriage and steel track undercarriage.

6. We can design track undercarriage from customers’ requirements.

7. We can recommend and assemble the motor & drive equipment as customers’ requests. We can also design the whole undercarriage according to special requirements, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.
