Steel rubber track undercarriage system for mobile stone jaw cone hammer impact crusher machine with screen feeder and conveyor

Short Description:

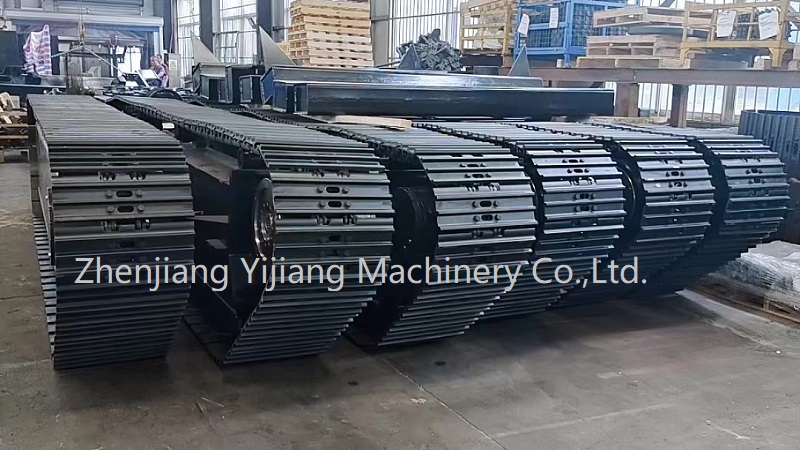

The installation of the steel crawler undercarriage system, designed to carry up to 20 tons, has been completed successfully.

Dimensions (mm)：4100*2650*754

Load capacity (KG):20000

Dead weight (KG): 4200

Steel track (mm): 700*147*47

Climbing ability : ≤30°

Send email to us

Product Detail

Product Tags

Product Description

1.What are the unique advantages of Yijiang's steel crawler undercarriages?

1. High load-bearing capacity: Yijiang steel track undercarriag is designed to withstand heavy loads and provide stability for heavy machinery and equipment.

2. Excellent traction: steel track undercarriag provide excellent traction, allowing the machine to operate effectively in challenging terrains such as mud, snow and uneven surfaces.

3. Durability: Yijiang steel track undercarriag is made of high-quality materials to ensure durability and wear resistance, thereby extending the service life of the chassis.

4. Strong adaptability: The undercarriage system is designed to adapt to various environmental conditions and is suitable for use in construction, mining, agriculture, military and other industries.

5. Stability: Yijiang steel track undercarriag operates stably and smoothly, which helps to improve the overall performance and safety of the machinery.

Overall, Yijiang steel track undercarriag has high load-bearing capacity, excellent traction, durability, adaptability and stability, making it a reliable choice for heavy machinery in various industries.

2. The importance of selecting the Yijiang track undercarriage for mobile crushers

At Yijiang, we are proud to offer custom track undercarriage options for mobile crushers. Our advanced technology and engineering expertise allow us to customize undercarriage systems to meet each customer's specific needs and requirements. When working with Yijiang, you can be sure that you will receive high-quality custom solutions that are built to last.

One of the main benefits of choosing Yijiang for your custom track undercarriage needs is our factory custom pricing. This means you can get a tailor-made solution without breaking the bank. We understand the importance of achieving cost efficiencies without compromising quality, and our factory custom pricing reflects this commitment. With Yijiang, you can enjoy competitive prices tailored to your specific requirements.

3. Why should I choose Yijiang steel tracked undercarriage?

For 19 years, Yijiang's team has designed and produced various styles of steel track undercarriage. It successfully helps customers around the world complete the manufacturing and transformation of mechanical equipment.

The load-bearing capacity of Yijiang steel track undercarriage ranges from 2 tons to 120 tons. You can choose the undercarriage that suits your requirements from dozens of different styles and drawings we already have, and you can also provide the undercarriage parameters. Our engineering team will strictly design and manufacture drawings to customize and manufacture a unique undercarriage for you.

4. What parameters are provided that will facilitate the rapid delivery of your order?

In order to recommend a suitable drawing and quotation to you , we need to know:

a. Rubber track or steel track undercarriage, and need the middle frame.

b. Machine weight and undercarriage weight.

c. Loading capacity of the track undercarriage ( the weight of the whole machine excluding of track undercarriage）.

d. Undercarriage’s length, width and height

e. Track’s Width.

f. The max speed (KM/H).

g. Climbing slope angle.

h. The machine’s apply range , working environment.

i. Order quantity.

j. Port of destination.

k. Whether you require us to purchase or collocate relevant motor and gear box or not, or other special request.

Parameter

See the full table here

Application Scenario

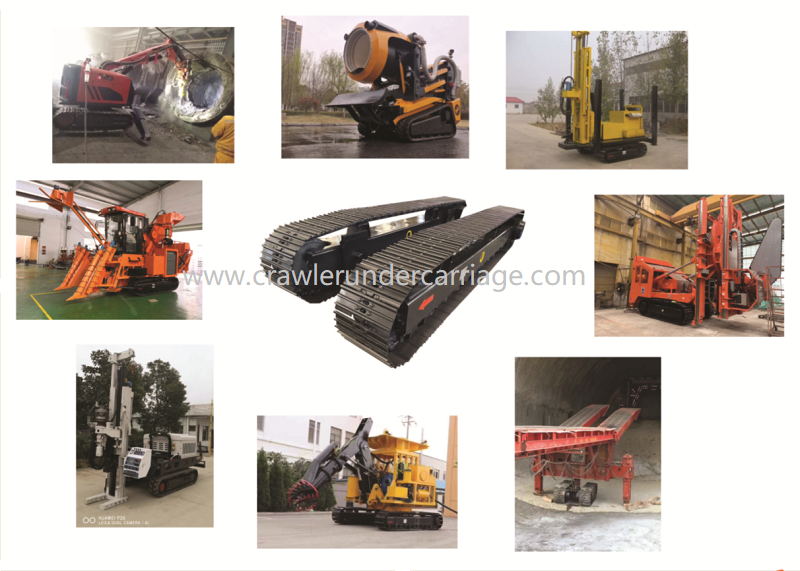

YIKANG complete undercarriages are engineered and designed in many configurations to serve a wide range of applications.

Our company designs, customizes and produces all kinds of steel track complete undercarriage for loads of 20 tons to 150tons. Steel tracks undercarriages are suitable for roads of mud and sand, stones rock and boulders , and steel tracks are stable on every road.

Compared with rubber track, rail has abrasion resistance and little risk of fracture.

Customized packing and shipping

YIKANG track undercarriage packing: Steel pallet with wrapping fill, or Standard wooden pallet.

Port: Shanghai or custom requirements

Mode of Transportation: ocean shipping, air freight, land transportation.

If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets)	1 - 1	2 - 3	>3
Est. Time(days)	20	30	To be negotiated

Yijiang company can custom Rubber and Steel Track Undercarriage for your machine

1. ISO9001 quality certificate

2. Complete track undercarriage with steel track or rubber track, track link , final drive, hydraulic motors, rollers, crossbeam.

3. Drawings of track undercarriage are welcome.

4. Loading capacity can be from 0.5T to 150T.

5. We can supply both rubber track undercarriage and steel track undercarriage.

6. We can design track undercarriage from customers’ requirements.

7. We can recommend and assemble the motor & drive equipment as customers’ requests. We can also design the whole undercarriage according to special requirements, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.
